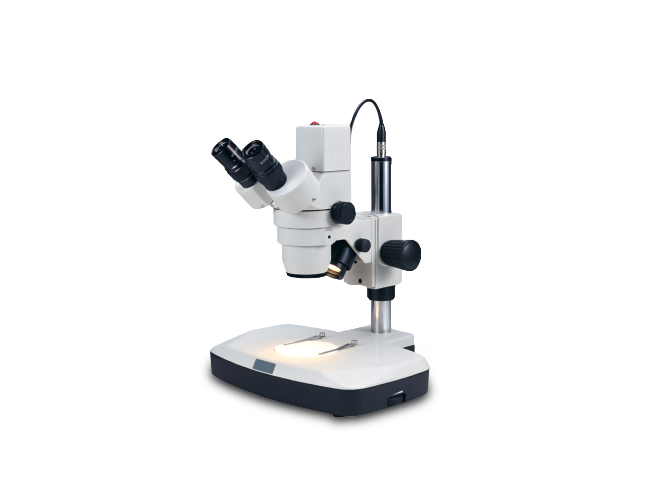

Stereo Zoom Microscope

Optimizing Capsule Quality Control

The digital zoom microscope is a high performance stereomicroscope with continuous zoom ranges of 4:1. The microscope allows continuous variable magnification between 10X - 40X, while total magnification varies from 2.5X to 120X depending on the eyepieces and auxiliary objectives used. With the bilateral zoom knobs, users are able to adjust magnification while the microscope remains perfectly parfocal. It is the ideal instrument for examining the shape and thickness of both the leading and trailing seals of a soft gelatin capsule.

Microscope Features
  • Eyepieces - WF10X/20mm on with diopter control
  • Zoom Optics - 1X-4X Greenough Zoom system
  • Standard Magnification - Zoom from 10X to 40X
  • Stage - Small Footprint Pole Stand with reversible and frosted stage plates & clips
  • Illumination - 12V/20W Halogen top and bottom illumination with dimming control
  • Power Supply - Attachable Universal Voltage Power Supply 110V~240V
Camera Features
  • Chip Configuration - Built-in 1/2" Live 2.0 Megapixel Imaging Chip
  • Data Output - Hi-Speed USB2.0
  • Power Supply - Through USB Cable from Computer
  • Included Software - Images Plus 2.0ML for Windows & Images Plus 2.0 for Macintosh OSX
  • Included Accessories - Calibration Slide for accurate measurements; Immersion Oil
  • Minimum Specifications - Windows: XP or higher; 256MB RAM; P4; Built-in USB2.0; Macintosh OSX; 256MB RAM; G4; Built-in USB2.0
