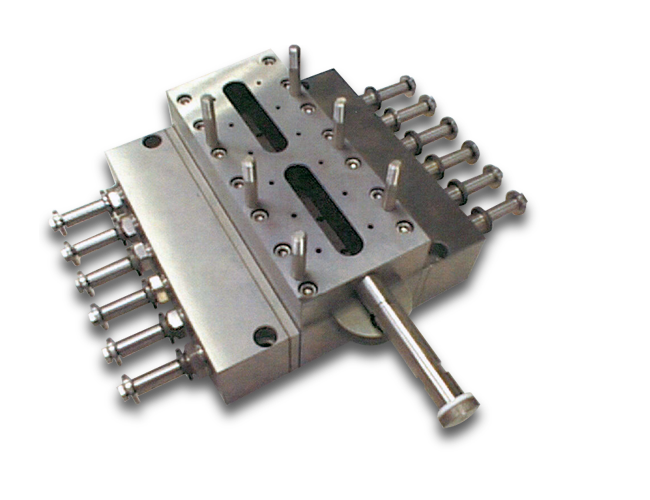

Medicine Pumps

Unrivaled Medicine Pump Fill Accuracy

We offer three different size medicine pumps - mini, standard and maxi - to accommodate the production of any size capsule fill weight and all sizes of encapsulation machines. This allows for the flexibility to produce a variety of paste, PEG and multi-vitamin products. The pumps are available in harden or stainless steel. They have a fill accuracy of ± 1%.

  • Flexible to produce pastes, PEG and multi-vitamin products
  • Fill accuracy of ± 1 %
  • Positive displacement pump
  • Slider valve with lapped surface to avoid oil leakage
  • Plungers sealed by teflon seals
  • Capable of encapsulating thick paste up to 60%
  • Manual adjuster to allow operator to manually change fill volume
  • 440 stainless steel optional
  • Plungers made of hard chrome steel
  • Precision gauge to monitor accuracy of plunger movement
Mini
  • Fill Weight: 0-10 minims
  • Plungers: 14, 16, 30
Standard
  • Fill Weight: 0-40 minims
  • Plungers: 10, 12, 14, 16, 20, 24
Maxi
  • Fill Weight: 0-80 minims
  • Plungers: 10, 12, 13, 14
